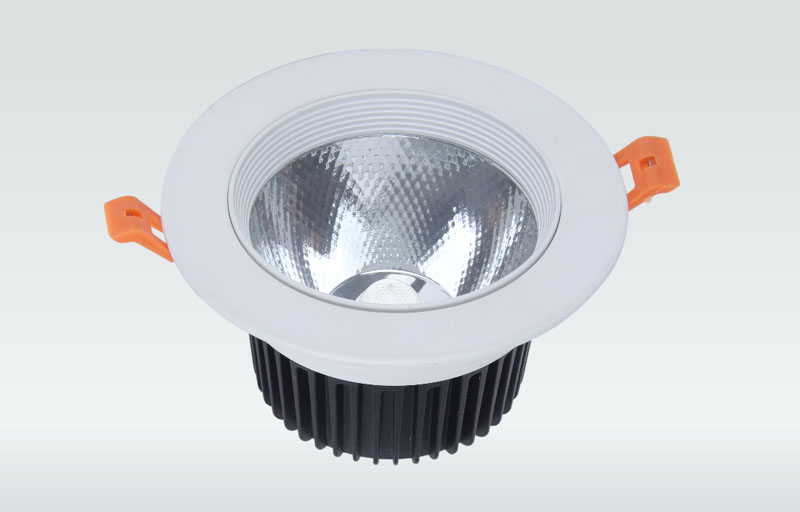

LED Downlight Series
Model: BDLLS
Features
1.Constant-current driver, low power consumption and safety
2.Clips moutning, Simple and easy
3.Unique electronic circuit that truly achieve Energy Saving
Prev: BDLLQ Next: BDLLY

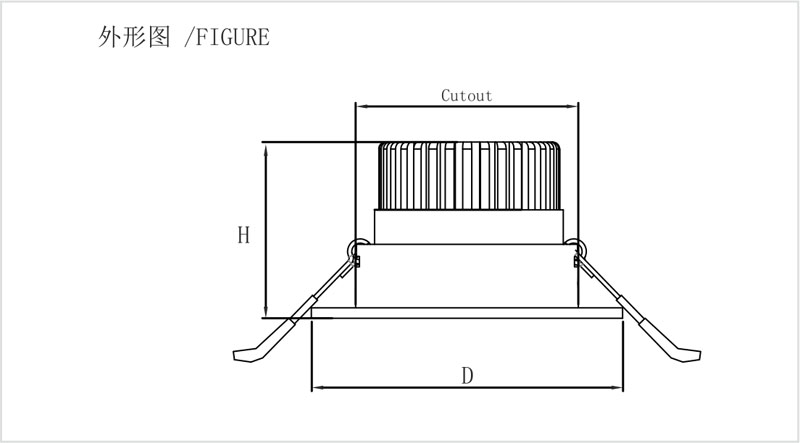

Model Input Voltage Power Beam Angle Luminous Flux LED Life Time Size(mm) Cutout
BDLLS005 100-240V 5W 24° 377Lm COB ≥50000Hrs ∅90*H56 ∅70
BDLLS009 100-240V 9W 24° 653Lm COB ≥50000Hrs ∅110*H68 ∅90
BDLLS015 100-240V 15W 24° 1450Lm COB ≥50000Hrs ∅140*H90 ∅113
BDLLS022 100-240V 22W 24° 1875Lm COB ≥50000Hrs ∅162*H90 ∅140
